Docker for Cluster Computing in Python

Olivier Grisel - EuroSciPy 2016

1 / 46

OutlineDistributed ML with joblib and dask/distributed
A quick intro to Docker
Cluster orchestration with Docker and Kubernetes
2 / 46

Distributed ML with joblib and dask/distributed3 / 46

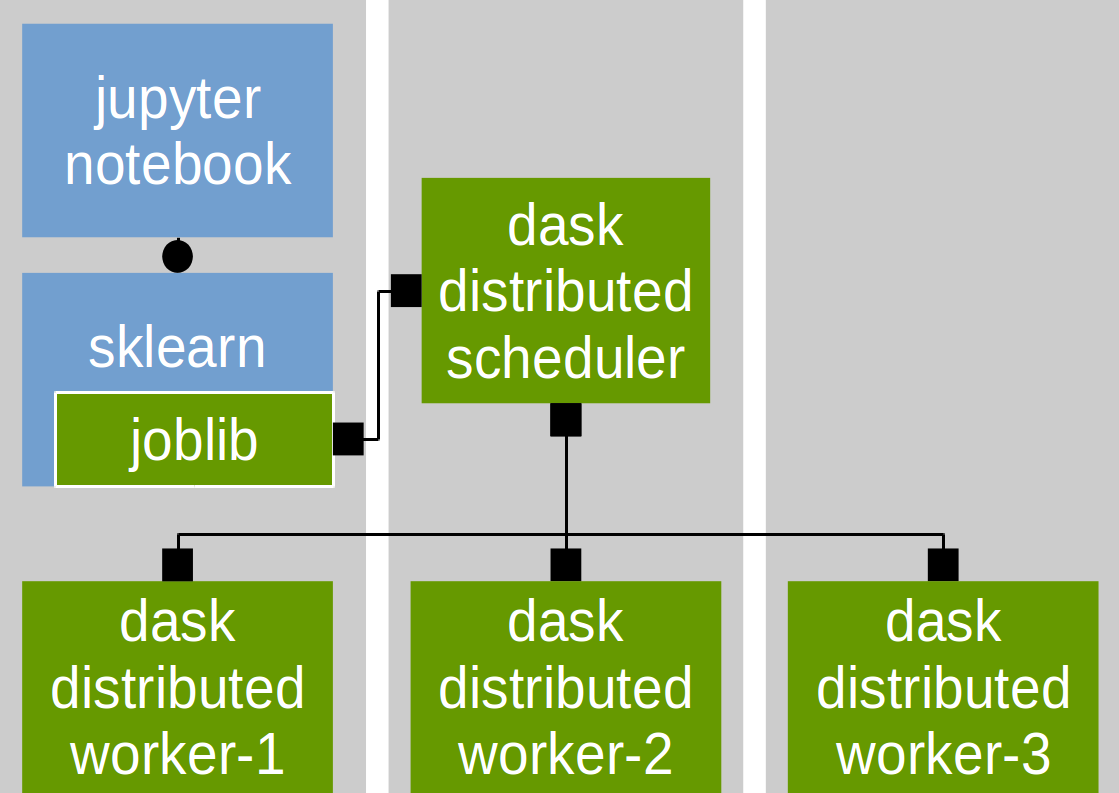

A cluster for sklearn

4 / 46

Demo

https://github.com/ogrisel/docker-distributed

Have a look a the notebooks in the examples folder.

https://youtu.be/6mKNSEQ0FIQ

5 / 46

What is Docker?6 / 46

Docker is:Not a virtual machine system
Linux container + Layered file-system + Abstract network
It can run in a VM (or not)
7 / 46

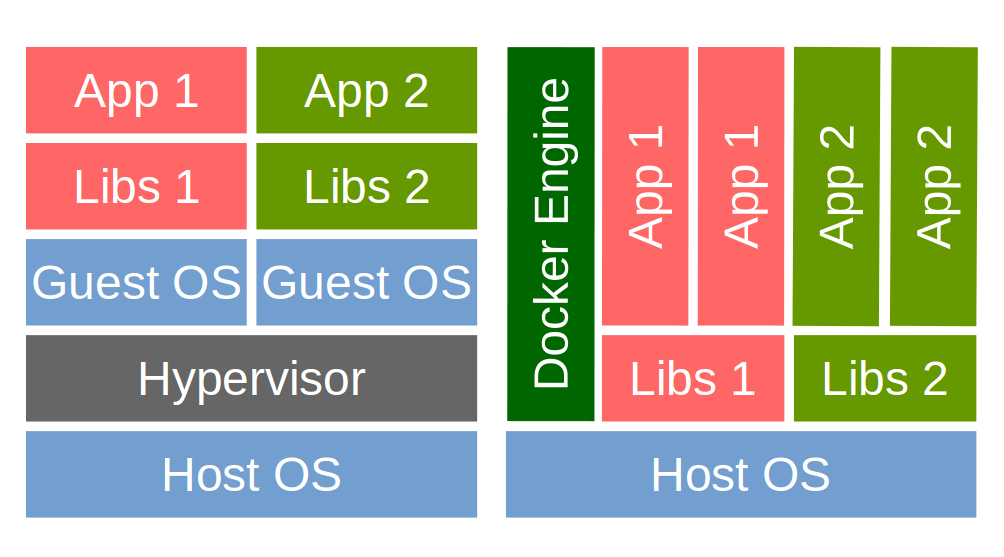

VM vs Container

VM-based hosting vs Container-based hosting

8 / 46

Why is docker nicer than VMsLess overhead: isolation vs virtualization
Layered FS: incremental diffs + common base images
Nice command line based UX
Simple reproducible builds and deployment
9 / 46

Docker architecture

10 / 46

Some use casesHost applications / services efficiently
Fast developer environment setup
Flexible build / Continuous Integration
Quickly provision a compute cluster
Reproducible science
11 / 46

Getting started with Docker

https://docs.docker.com/engine/installation/

Windows: daemon in Linux with Hyper-V or Virtualbox

OSX: daemon in Linux with xhyve or Virtualbox

Linux: daemon on host without VM

Cross-platform docker client binary

12 / 46

Running in a container

$ docker run python:3.5 python -c "print(40 + 2)"

13 / 46

Running in a container

$ docker run python:3.5 python -c "print(40 + 2)"

14 / 46

Running in a container

$ docker run python:3.5 python -c "print(40 + 2)"

15 / 46

Running in a container

$ docker run --rm python:3.5 python -c "print(40 + 2)"

16 / 46

Running in a container

$ docker run --rm python:3.5 python -c "print(40 + 2)"
Unable to find image 'python:3.5' locally
latest: Pulling from library/python
357ea8c3d80b: Already exists
52befadefd24: Pull complete
3c0732d5313c: Pull complete
ceb711c7e301: Downloading [=========>    ] 90.27 MB/129.7 MB
4211bb537697: Download complete
71f9074c0739: Download complete
3e5349707036: Download complete

17 / 46

Running in a container

$ docker run --rm python:3.5 python -c "print(40 + 2)"
Unable to find image 'python:3.5' locally
latest: Pulling from library/python
357ea8c3d80b: Already exists
52befadefd24: Pull complete
3c0732d5313c: Pull complete
ceb711c7e301: Pull complete
4211bb537697: Pull complete
71f9074c0739: Pull complete
3e5349707036: Pull complete
Digest: sha256:a755ad5a30b2[...]
Status: Downloaded newer image for python:3.5
42

18 / 46

Running in a container

$ docker run --rm python:3.5 python -c "print(40 + 2)"
Unable to find image 'python:3.5' locally
latest: Pulling from library/python
357ea8c3d80b: Already exists
52befadefd24: Pull complete
3c0732d5313c: Pull complete
ceb711c7e301: Pull complete
4211bb537697: Pull complete
71f9074c0739: Pull complete
3e5349707036: Pull complete
Digest: sha256:a755ad5a30b2[...]
Status: Downloaded newer image for python:3.5
42
$ docker run --rm python:3.5 python -c "print(40 + 3)"
43

19 / 46

Interactive sessions

$ docker run --rm -ti python:3.5 bash
root@10d2dfedb935:/#

20 / 46

Interactive sessions

$ docker run --rm -ti python:3.5 bash
root@10d2dfedb935:/# ps
  PID TTY          TIME CMD
    1 ?        00:00:00 bash
    8 ?        00:00:00 ps
root@10d2dfedb935:/#

21 / 46

Interactive sessions

$ docker run --rm -ti python:3.5 bash
root@10d2dfedb935:/# ps
  PID TTY          TIME CMD
    1 ?        00:00:00 bash
    8 ?        00:00:00 ps
root@10d2dfedb935:/# python
Python 3.5.2 (default, Aug  9 2016, 20:58:38)
[GCC 4.9.2] on linux
>>>

22 / 46

Interactive sessions

$ docker run --rm -ti python:3.5 bash
root@10d2dfedb935:/# ps
  PID TTY          TIME CMD
    1 ?        00:00:00 bash
    8 ?        00:00:00 ps
root@10d2dfedb935:/# python
Python 3.5.2 (default, Aug  9 2016, 20:58:38)
[GCC 4.9.2] on linux
>>> 40 + 2
42

23 / 46

Interactive sessions

$ docker run --rm -ti python:3.5 bash
root@10d2dfedb935:/# ps
  PID TTY          TIME CMD
    1 ?        00:00:00 bash
    8 ?        00:00:00 ps
root@10d2dfedb935:/# python
Python 3.5.2 (default, Aug  9 2016, 20:58:38)
[GCC 4.9.2] on linux
>>> 40 + 2
42
>>> ^D
root@10d2dfedb935:/# exit

24 / 46

A real-life example

$ cd bokeh/bokeyjs
$ npm install -g gulp
$ gulp build
[Bunch or errors caused by a broken nodejs install]

25 / 46

A real-life example

$ cd bokeh
$ docker run --rm --volume $PWD:/io node \
    bash -c "cd /io/bokehjs && npm install -g gulp && gulp build"

26 / 46

A real-life example

$ cd bokeh
$ docker run --rm --volume $PWD:/io node \
    bash -c "cd /io/bokehjs && npm install -g gulp && gulp build"

27 / 46

A real-life example

$ cd bokeh
$ docker run --rm --volume $PWD:/io node \
    bash -c "cd /io/bokehjs && npm install -g gulp && gulp build"
npm info it worked if it ends with ok
npm info using npm@3.10.3
npm info using node@v6.4.0
npm info attempt registry request try #1 at 12:45:51 PM
npm http request GET https://registry.npmjs.org/gulp
[...] # Download the Internet
[13:03:42] Finished 'build' after 10 s
$ ls bokehjs/node_modules | wc -l
604

28 / 46

Building an image29 / 46

$ git clone https://github.com/ogrisel/docker-distributed
$ ls docker-distributed
docker-compose.yml
Dockerfile
examples
kubernetes
README.md
requirements.txt

30 / 46

$ git clone https://github.com/ogrisel/docker-distributed
$ ls docker-distributed
docker-compose.yml
Dockerfile
examples
kubernetes
README.md
requirements.txt

31 / 46

$ git clone https://github.com/ogrisel/docker-distributed
$ ls docker-distributed
docker-compose.yml
Dockerfile
examples
kubernetes
README.md
requirements.txt

32 / 46

FROM debian:jessie
MAINTAINER Olivier Grisel <olivier.grisel@ensta.org>
RUN apt-get update -yqq && apt-get install -yqq wget bzip2 git \
  && rm -rf /var/lib/apt/lists/*
# Configure environment
ENV LC_ALL=C.UTF-8 LANG=C.UTF-8
RUN mkdir /work
WORKDIR /work
# Install Python 3 from miniconda
RUN wget -O miniconda.sh \
  https://repo.continuum.io/miniconda/Miniconda3-latest-Linux-x86_64.sh \
  && bash miniconda.sh -b -p /work/miniconda \
  && rm miniconda.sh
ENV PATH="/work/bin:/work/miniconda/bin:$PATH"
RUN conda install -y \
  pip \
  notebook \
  pandas \
  scikit-learn \
  && conda clean -tipsy
# Install the master branch of distributed and dask
COPY requirements.txt .
RUN pip install -r requirements.txt && rm -rf ~/.cache/pip/
# Add the example notebooks
COPY examples .

33 / 46

docker build

$ docker build -t ogrisel/distributed .
Sending build context to Docker daemon 178.2 kB
Step 1 : FROM debian:jessie
 ---> 1b01529cc499
Step 2 : MAINTAINER Olivier Grisel <olivier.grisel@ensta.org>
 ---> Using cache
 ---> 37887ee139f1
Step 3 : RUN apt-get update -yqq  && apt-get install -yqq wget [...]
 ---> Using cache
 ---> 3c2b8caccb80
[...]

34 / 46

docker build & docker push

$ docker build -t ogrisel/distributed .
Sending build context to Docker daemon 178.2 kB
Step 1 : FROM debian:jessie
 ---> 1b01529cc499
Step 2 : MAINTAINER Olivier Grisel <olivier.grisel@ensta.org>
 ---> Using cache
 ---> 37887ee139f1
Step 3 : RUN apt-get update -yqq  && apt-get install -yqq wget [...]
 ---> Using cache
 ---> 3c2b8caccb80
[...]
$ docker run --rm ogrisel/distributed \
    python -c "import sklearn; print(sklearn.__version__)"
0.17.1
$ docker push ogrisel/distributed

35 / 46

Orchestration36 / 46

Orchestration tools

Docker Swarm and Docker Compose

Kubernetes

DC/OS and Mesos

37 / 46

Kubernetes and GKE

$ gcloud config set compute/zone europe-west1-d
$ gcloud container clusters create cluster-1 \
    --num-nodes 3 \
    --machine-type n1-highcpu-32 \
    --scopes bigquery,storage-rw \
    --wait
Creating cluster cluster-1...done.
Created [https://container.googleapis.com/v1/.../cluster-1].
kubeconfig entry generated for cluster-1.
NAME       ZONE            ... MACHINE_TYPE   NUM_NODES  STATUS
cluster-1  europe-west1-d  ... n1-highcpu-32  3          RUNNING

38 / 46

Kubernetes and GKE

$ gcloud config set compute/zone europe-west1-d
$ gcloud container clusters create cluster-1 \
    --num-nodes 3 \
    --machine-type n1-highcpu-32 \
    --scopes bigquery,storage-rw \
    --wait
Creating cluster cluster-1...done.
Created [https://container.googleapis.com/v1/.../cluster-1].
kubeconfig entry generated for cluster-1.
NAME       ZONE            ... MACHINE_TYPE   NUM_NODES  STATUS
cluster-1  europe-west1-d  ... n1-highcpu-32  3          RUNNING

$ gcloud container clusters get-credentials cluster-1
Fetching cluster endpoint and auth data.
kubeconfig entry generated for cluster-1.

39 / 46

Kubernetes and GKE

$ git clone https://github.com/ogrisel/docker-distributed
$ cd docker-distributed
$ kubectl create -f kubernetes/
service "dscheduler" created
service "dscheduler-status" created
replicationcontroller "dscheduler" created
replicationcontroller "dworker" created
service "jupyter-notebook" created
replicationcontroller "jupyter-notebook" created

40 / 46

Kubernetes and GKE

$ git clone https://github.com/ogrisel/docker-distributed
$ cd docker-distributed
$ kubectl create -f kubernetes/
service "dscheduler" created
service "dscheduler-status" created
replicationcontroller "dscheduler" created
replicationcontroller "dworker" created
service "jupyter-notebook" created
replicationcontroller "jupyter-notebook" created

$ kubectl get services
NAME                CLUSTER-IP       EXTERNAL-IP      PORT(S)
dscheduler          10.115.249.189   <none>           8786/TCP,9786/TCP
dscheduler-status   10.115.244.201   130.211.50.206   8787/TCP
jupyter-notebook    10.115.254.255   146.148.114.90   80/TCP
kubernetes          10.115.240.1     <none>           443/TCP

41 / 46

distributed-worker.yml

apiVersion: v1
kind: ReplicationController
metadata:
  name: dworker-controller
spec:
  replicas: 3
  selector:
    name: dworker
  template:
    metadata:
      labels:
        name: dworker
    spec:
      containers:
        - name: dworker
          image: ogrisel/distributed:latest
          args: ["dask-worker", "dscheduler:8786"]

42 / 46

ConclusionDocker is a useful developer tool
Containers make cluster setup reproducible and cloud agnostic
Docker Swarm vs Kubernetes vs Mesos: learn any one and understand others
43 / 46

Thank you

Rackspace for free cloud resources to support SciPy projects and for helping the Python community in general.

Google for GCP credits to test distributed Python with Kubernetes.

Inria for supporting my work on scikit-learn and related projects.

44 / 46

Thank you!

Sample configuration:

github.com/ogrisel/docker-distributed

Those slides:

ogrisel.github.io/decks/2016_euroscipy_docker

45 / 46

Image credits

"Supermicro Storage" by Robert: https://flic.kr/p/e17qr3
"smiiile!" by mooglet: https://flic.kr/p/am9zQe
"Docker Architecture" https://docs.docker.com/engine/understanding-docker/
"Container terminal" by Martin Abegglen: https://flic.kr/p/b7rw5D
"Symphonic Orchestra and Choir of the WYD" by HazteOir.org: https://flic.kr/p/c5B6Cd

↑, ←, Pg Up, k	Go to previous slide
↓, →, Pg Dn, Space, j	Go to next slide
Home	Go to first slide
End	Go to last slide
Number + Return	Go to specific slide
b / m / f	Toggle blackout / mirrored / fullscreen mode
c	Clone slideshow
p	Toggle presenter mode
t	Restart the presentation timer
?, h	Toggle this help

Docker for Cluster Computing in Python

Outline

Distributed ML with joblib and dask/distributed

A quick intro to Docker

Cluster orchestration with Docker and Kubernetes

Distributed ML with joblib and dask/distributed

A cluster for sklearn

Demo

What is Docker?

Docker is:

Not a virtual machine system

Linux container + Layered file-system + Abstract network

It can run in a VM (or not)

VM vs Container

Why is docker nicer than VMs

Less overhead: isolation vs virtualization

Layered FS: incremental diffs + common base images

Nice command line based UX

Simple reproducible builds and deployment

Docker architecture

Some use cases

Host applications / services efficiently

Fast developer environment setup

Flexible build / Continuous Integration

Quickly provision a compute cluster

Reproducible science

Getting started with Docker

Windows: daemon in Linux with Hyper-V or Virtualbox

OSX: daemon in Linux with xhyve or Virtualbox

Linux: daemon on host without VM

Cross-platform docker client binary

Running in a container

Running in a container

Running in a container

Running in a container

Running in a container

Running in a container

Running in a container

Interactive sessions

Interactive sessions

Interactive sessions

Interactive sessions

Interactive sessions

A real-life example

A real-life example

A real-life example

A real-life example

Building an image

docker build

docker build & docker push

Orchestration

Orchestration tools

Kubernetes and GKE

Kubernetes and GKE

Kubernetes and GKE

Kubernetes and GKE

distributed-worker.yml

Conclusion

Docker is a useful developer tool

Containers make cluster setup reproducible and cloud agnostic

Docker Swarm vs Kubernetes vs Mesos: learn any one and understand others

Thank you

Thank you!

Sample configuration:

Those slides:

Image credits

Outline

Distributed ML with joblib and dask/distributed

A quick intro to Docker

Cluster orchestration with Docker and Kubernetes

Help
